Youtuber Demonstrates how to Photograph Heat in Optical Illusion Video

After a long 8 months, ace Youtube channel Brusspup is back with another amazing optical illusion effect video. This time round the are demonstrating what’s known as the Schileren effect.

For those who’ve not seen this before, Enjoy. It is genuinely breathtaking.



Using a large concave mirror, like one found at the bottom of a telescope, small LED light source, razor blade and imaging device Brusspup reveals differences in air density by placing a variety of objects in front of the mirror. Even subtle changes in ambient air temperature from the palms of hands are visible.

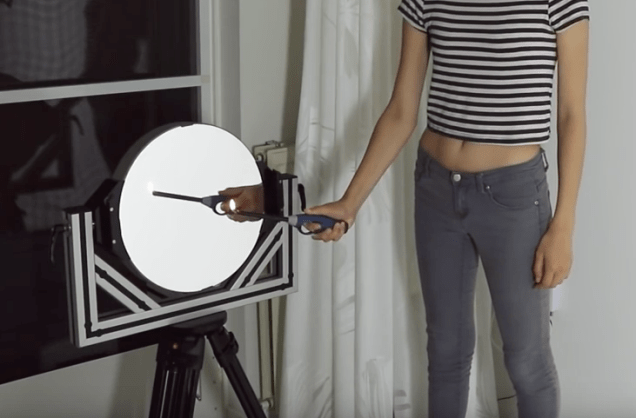

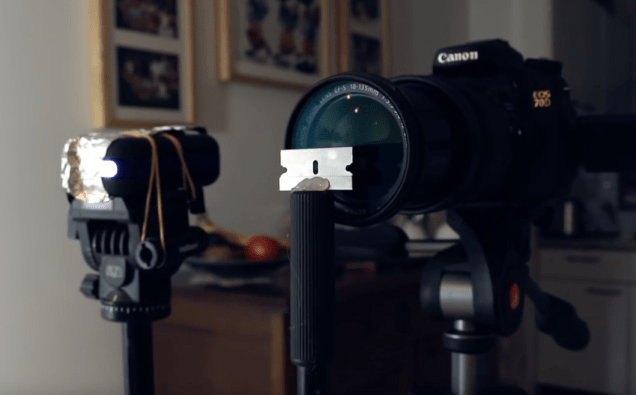

Here’s the rudimentary setup. Note the light source is placed next to the camera lens and not directly in front of it as it may appear:

Screen Shot 2016-08-31 at 10.45.31Screen Shot 2016-08-31 at 10.45.00Screen Shot 2016-08-31 at 10.44.00

So how does it work? By reflecting the light source back into the camera and through a filter (in this instance a sharp blade) some of the photons are blocked. The refracted photons that have interacted with the heat source that do return then act as a shadow to reveal the illusion.

Screen Shot 2016-08-31 at 10.47.28Screen Shot 2016-08-31 at 10.46.13Screen Shot 2016-08-31 at 10.48.01

Interested in giving it a go yourself and learning more? JoshTheEngineer has put together this incredibly informative and in depth video on how to create your own Schileren video.
